Custom Thermoforming Plastic Film for Forming and Non-Forming Packaging Webs
Describe
Fuya Thermoforming Plastic Film is made for food packaging lines that need forming bottom webs and matching non-forming top webs. The film helps create a smooth package shape, clear product display and secure seal, so the finished pack looks clean and feels dependable in storage and transport.
Different products need different film behavior. Some packs need deeper forming and stronger corner protection. Some need higher transparency for shelf display. Others need oxygen barrier, heat resistance or stronger sealing performance. Fuya adjusts the structure according to the package design and packaging method.
The film can be customized with PA, PE, PP, EVOH or other suitable layers for vacuum, MAP, retort or chilled food applications. Thickness, width, transparency, color, printing and barrier level can be made according to the product and equipment.
Multi-layer thermoforming film for general food packaging. Structures configurable by barrier level and forming depth. Food-contact certified. Send your specifications via the Send Inquiry form - response within 24 hours.
| Product Specifications | Sample Test Report - PA/PE · 7-layer · 150 μm | |||
| Material structure | PA/PE; PE/EVOH/PE; PA/EVOH/PE; PA/EVOH/PP | Test item | Measured result | Test standard / condition |
| Layer options | 7-layer, 9-layer and 11-layer; standard-, medium- and high-barrier options | Tensile strength | TD 75 / MD 72 N/15 mm | GB/T 1040.3 |
| Thickness range | 30–400 μm | Elongation at break | TD 480% / MD 465% | GB/T 1040.3 |
| Maximum width | Up to 3,500 mm | Heat-seal strength | 54 N/15 mm | QB/T 2358; 140°C; 1 s; 0.2 MPa |
| Applications | General food thermoforming packaging | Peel strength | 10.5 N | GB/T 2790 |
| Features | Configurable barrier, forming performance, puncture resistance and stable sealing | Coefficient of friction | μs 0.27 / μd 0.22 | GB 10006 |
| Customization | Structure, thickness, width, color, printing and barrier level | WVTR | 3.2 g/(m²·24 h) | GB/T 1037; 38°C / 90% RH |
| Documents | Test reports and applicable food-contact documents available on request | OTR | 22.5 cm³/(m²·24 h·0.1 MPa) | GB/T 1038 |
| RFQ information | Packed product, packaging method, forming depth, machine type, width, quantity and destination country | Results apply only to the tested PA/PE 7-layer, 150 μm sample. Final performance depends on the confirmed structure, thickness and test conditions. Full report available on request. | ||
To avoid over-specifying the film, start with the product and the actual packing process. Send the package dimensions, forming depth, machine model, storage conditions and annual demand for a structure recommendation and sample plan.
Applications
Food Packaging

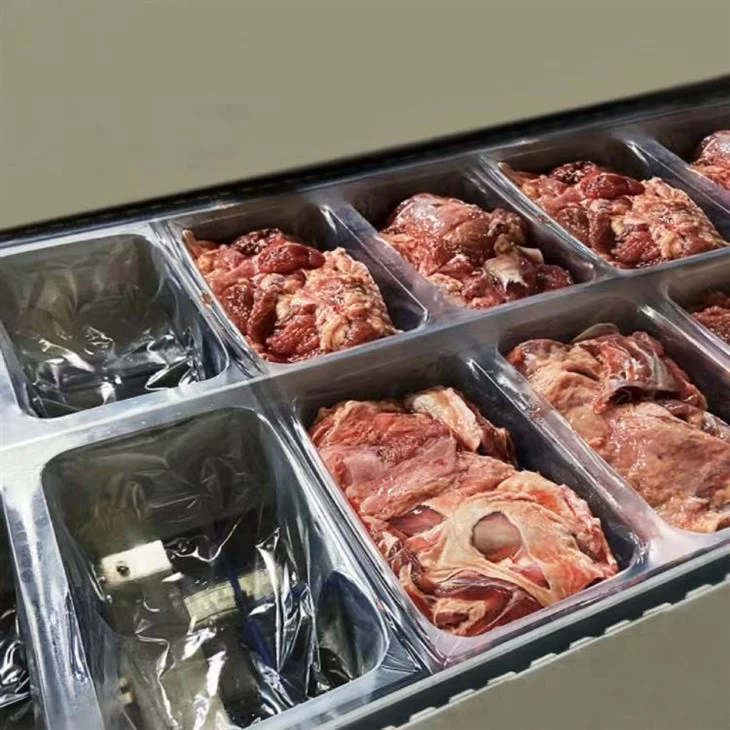

Trays for meat, seafood, and fruits, as well as dairy products.
Consumer Goods
Blister packs for toys, electronics, and household items.
Medical Packaging
Sterile, protective, and specialized pouches or trays.
Advantages
Shelf Life Extension
By removing oxygen, it prevents spoilage and extends the shelf life of food, sometimes up to 10 times, reducing food waste.
01
Aesthetics & Visibility
High transparency and tight fit offer superior product presentation and allow for vertical display in retail.
02
Leak Protection
The seal prevents liquids from leaking out.
03
Versatile
Can produce flexible, semi-rigid, or rigid packaging.
04
Barrier Protection
Provides protection against moisture, oxygen, and contaminants.
05
Pics
About Factory
Packing & Delivery
FAQ
Q: 1How to order ?
A: Contact our sales, send us film dimensions, qty, and specifications details, after we checked all details we will send you formal quotation
Q: 2 What size can we provide?
A: We provide thicknesses from 25-380 microns, with a max width of up to 3500 mm,customize size available
Q: 3 when can i get them after placed an order ?
A: Normally our prepare goods time 2-3days , if customize films at least 1 week
Q: 4 Can we get sample for testing
A: Yes we can provide sample for free
Q: 5 Why Choose us?
A: We have extensive industry experience and a professional team. 24 Hours Online Service. Good service with high quality products for selling, fast delivery with careful after selling services.
