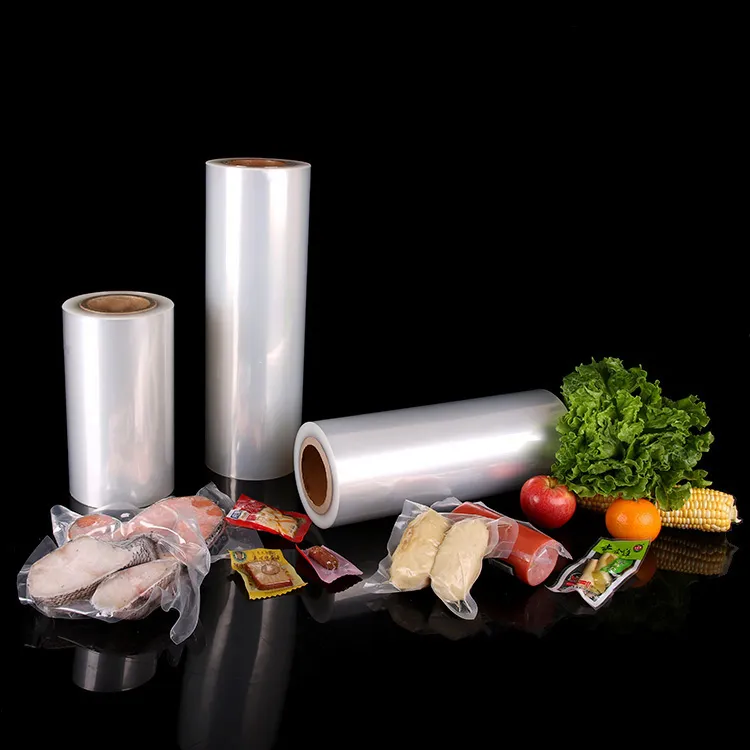

EVOH high barrier thermoforming film is designed for deep-draw packs that need oxygen protection, puncture resistance and reliable sealing after forming.
Describe
Deep drawing stretches the film most at corners, edges and the bottom of the cavity. If the structure is not suited to the forming depth, the package can thin unevenly, lose barrier performance or become vulnerable to puncture and seal failure.
FUYA EVOH high barrier thermoforming film combines an EVOH oxygen barrier with layers selected for forming behavior, puncture resistance and sealing. The structure can be adjusted for meat, seafood, cheese, ready meals and other products packed on automatic thermoforming lines.
For a relevant trial, send the product, cavity dimensions, forming depth, bottom-web thickness, top-web or sealing material, machine model, heating conditions, target shelf life and roll size. This page focuses on EVOH barrier retention after forming, while the Thermoforming Film category covers the broader process range.
| Product Specifications | Sample Test Report - PA/EVOH/PE · 11-layer · 150 μm | |||
| Material structure | PA/EVOH/PE; PP/EVOH/PP; PE/EVOH/PE | Test item | Measured result | Test standard / condition |
| Layer options | 7-layer, 9-layer and 11-layer high-barrier structures | Thickness | 151 μm | Nominal 150 μm |
| Thickness range | 50–400 μm | Haze | 4.2% | GB/T 2410-2008 |
| Maximum width | Up to 3,500 mm | Tensile strength | TD 76 / MD 72 N/15 mm | GB/T 1040.3 |
| Applications | Deep-draw packs for meat, seafood, cheese, ready meals and other oxygen-sensitive products | Elongation at break | TD 490% / MD 475% | GB/T 1040.3 |
| Features | EVOH oxygen barrier, deep-forming performance, puncture resistance, thickness control and stable sealing | Heat-seal strength | 56 N/15 mm | QB/T 2358 |
| Customization | Thickness, width, color, printing and barrier level | Peel strength | 10.5 N | GB/T 2790 |
| Documents | ISO 13485, test reports and food-contact documents available on request | Coefficient of friction | μs 0.25 / μd 0.21 | GB 10006 |
| RFQ information | Product, cavity dimensions, forming depth, bottom-web thickness, top web, machine model, heating and sealing conditions, shelf-life target and roll size | WVTR | 2.7 g/(m²·24 h) | GB/T 1037; 38°C / 90% RH |
| Specification values are customized by structure and application; confirm the selected specification before sampling or quotation. | OTR | 1.2 cm³/(m²·24 h·0.1 MPa) | GB/T 1038 | |
| Results apply only to the tested PA/EVOH/PE 150 μm sample. Report environment: 25°C / 50% RH · Test date: 2021-11-04 · Full report available on request. | ||||
Deep-draw performance must be judged at the thinnest formed areas, not only on the flat roll. Provide the cavity geometry, forming depth and machine conditions so the EVOH structure can be evaluated for barrier retention, corner strength and sealing after forming.

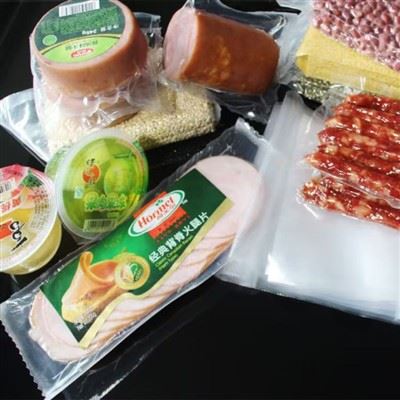

Typical Applications
Ready-to-eat meals
Seafood
Cheese and Daily Product
Oil-Containing Product
Bakery Product
Medical and Pet Packaging
Advantages
Extended Shelf Life
Exceptional Oil Barrier Protection
Superior Thermoformability
High Puncture-Resistance
Low Oxygen Transmission Rate
Pics
About Factory
Packing & Delivery
Factory
FAQ
Q: 1How to order ?
A: Contact our sales, send us film dimensions, qty, and specifications details, after we checked all details we will send you formal quotation
Q: 2 What size can we provide?
A: We provide thicknesses from 25-380 microns, with a max width of up to 3500 mm,customize size available
Q: 3 when can i get them after placed an order ?
A: Normally our prepare goods time 2-3days , if customize films at least 1 week
Q: 4 Can we get sample for testing
A: Yes we can provide sample for free
Q: 5 Why Choose us?
A: We have extensive industry experience and a professional team. 24 Hours Online Service. Good service with high quality products for selling, fast delivery with careful after selling services.
