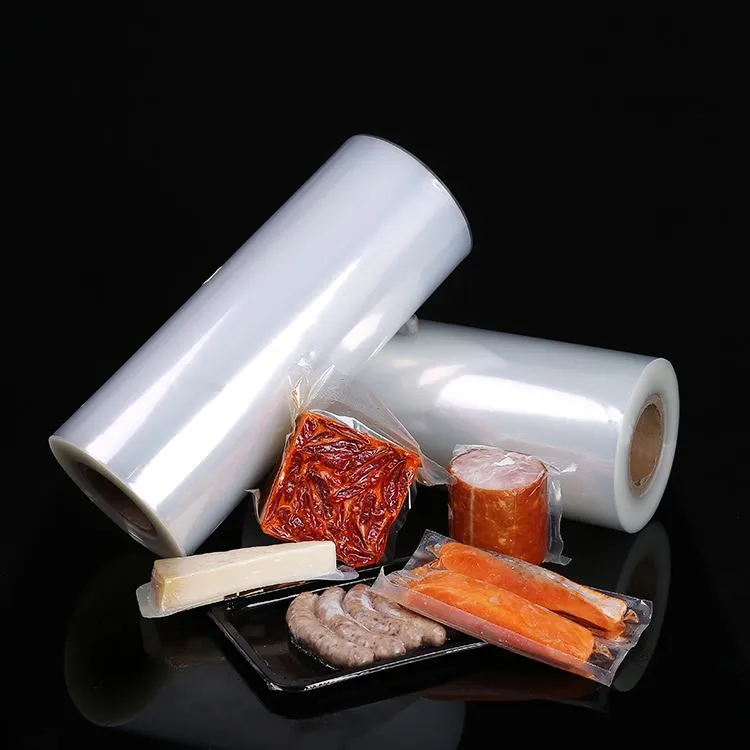

Coextruded EVOH barrier film integrates barrier, strength and seal layers in a 7-layer, 9-layer or 11-layer structure for custom packaging.
Describe
Using separate materials for barrier, strength and sealing can make film selection and converting more complicated. A coextruded structure integrates these functions into one roll film with a defined layer sequence.
In FUYA coextruded EVOH film, the EVOH layer controls oxygen and aroma transfer. The supporting PA, PE or PP layers are selected for mechanical strength, humidity protection, processing and sealing. Seven-layer, 9-layer and 11-layer options allow the design to be adjusted without treating layer count as the only measure of performance.
Share the product, package format, required barrier, contact layer, converting process, equipment, roll dimensions and annual demand. The recommended layer sequence should be confirmed against the actual packaging process.
| Product Specifications | Sample Test Report - PA/EVOH/PE · 11-layer · 150 μm | |||
| Material structure | PA/EVOH/PE; PP/EVOH/PP; PE/EVOH/PE | Test item | Measured result | Test standard / condition |
| Layer options | 7-layer, 9-layer and 11-layer high-barrier structures | Thickness | 151 μm | Nominal 150 μm |
| Thickness range | 50–400 μm | Haze | 4.2% | GB/T 2410-2008 |
| Maximum width | Up to 3,500 mm | Tensile strength | TD 76 / MD 72 N/15 mm | GB/T 1040.3 |
| Applications | Food and selected medical packaging that requires several functions in one coextruded roll film | Elongation at break | TD 490% / MD 475% | GB/T 1040.3 |
| Features | Integrated oxygen barrier, mechanical support, moisture protection, processing stability and sealability | Heat-seal strength | 56 N/15 mm | QB/T 2358 |
| Customization | Thickness, width, color, printing and barrier level | Peel strength | 10.5 N | GB/T 2790 |
| Documents | ISO 13485, test reports and food-contact documents available on request | Coefficient of friction | μs 0.25 / μd 0.21 | GB 10006 |
| RFQ information | Product, package format, required barrier, converting process, sealing substrate, equipment, roll dimensions, annual demand and destination | WVTR | 2.7 g/(m²·24 h) | GB/T 1037; 38°C / 90% RH |
| Specification values are customized by structure and application; confirm the selected specification before sampling or quotation. | OTR | 1.2 cm³/(m²·24 h·0.1 MPa) | GB/T 1038 | |
| Results apply only to the tested PA/EVOH/PE 150 μm sample. Report environment: 25°C / 50% RH · Test date: 2021-11-04 · Full report available on request. | ||||
A coextruded structure works best when every layer solves a defined requirement. Rank oxygen protection, strength, forming, moisture exposure and sealing needs, then share the converting process and roll specification so unnecessary layers are not added to the design.
Main Applications
Ready-to-eat meals
Seafood
Cheese and Daily Product
Oil-Containing Product
Bakery Product
Product Advantages
- Effectively blocks oxygen and oils, preserving food freshness and flavor.
- Good Flexibility and Heat Sealability: Convenient for processing and consumer use.
- Water Resistance: The inner and outer PE layers protect EVOH, ensuring its performance is not compromised by humidity.
Pics
About Factory
Packing & Delivery
Factory
FAQ
Q: 1 How to order ?
A: Contact our sales, send us film dimensions, qty, and specifications details, after we checked all details we will send you formal quotation
Q: 2 What size can we provide?
A: We provide thicknesses from 25-380 microns, with a max width of up to 3500 mm,customize size available
Q: 3 when can i get them after placed an order ?
A: Normally our prepare goods time 2-3days , if customize films at least 1 week
Q: 4 Can we get sample for testing
A: Yes we can provide sample for free
Q: 5 Why Choose us?
A: We have extensive industry experience and a professional team. 24 Hours Online Service. Good service with high quality products for selling, fast delivery with careful after selling services.
