EVOH High Barrier Anti Fog Film for Chilled Food

Send Inquiry

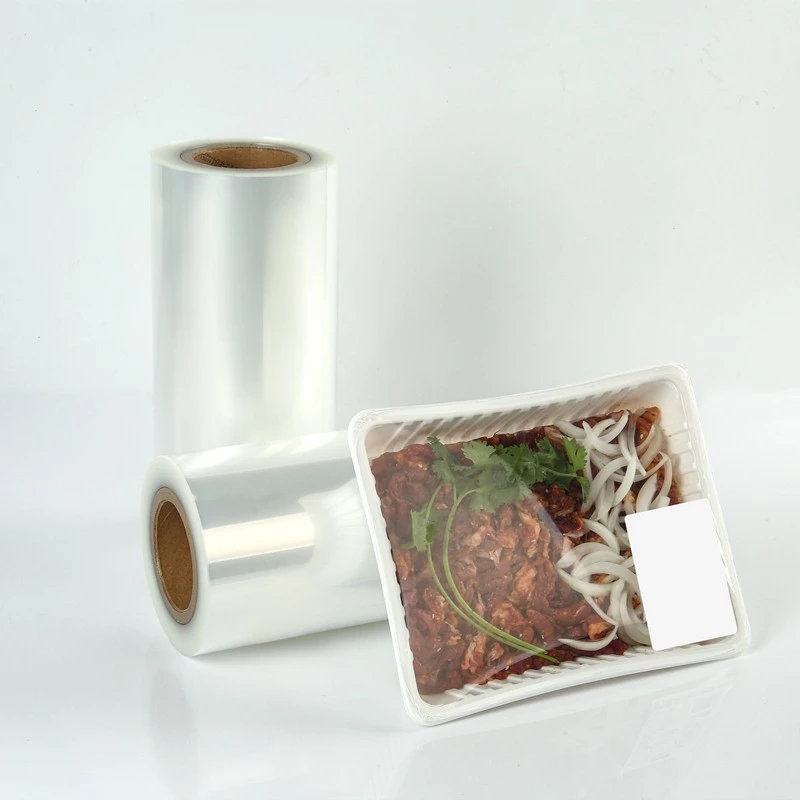

EVOH High Barrier Anti Fog Film for Chilled Food
Details
FUYA's high-barrier eleven-layer cast co-extruded EVOH anti-fog film uses EVOH as the intermediate barrier layer to achieve superior oxygen and nitrogen barrier performance. Nylon is used as the water vapor barrier layer to prevent water vapor from condensing on the film surface and affecting transparency. This functional film prevents water vapor from evaporating and forming fog on the film surface under high and low temperature changes.
Category
Lidding Film
Share to
Description

EVOH high barrier anti fog film for chilled meat, fruit and vegetables helps improve visibility, oxygen protection and package integrity.



Describe

Chilled meat, fruit and vegetables need packaging that protects the product without hiding it. Oxygen exposure can shorten shelf life, while fog on the lid can make fresh food look dull on the shelf. EVOH high barrier anti fog film is used when both protection and visibility matter.


FUYA can design EVOH barrier lidding structures with anti-fog and heat-seal or easy-peel layers for chilled food trays. The film can be adjusted for product respiration, moisture level, tray material, cold-chain temperature and target shelf life.


For quotation, provide the packed product, tray material, expected storage temperature, shelf-life target, sealing equipment, roll width and quantity. We can recommend a structure for barrier level, anti-fog clarity, seal strength and processing stability.

product-800-800





Product Specifications Sample Test Report - PA/EVOH/PE · 11-layer · 60 μm · Anti-fog
Material structure PA/PE; PA/EVOH/PE; PP/EVOH/PP; PE/EVOH/PE Test item Measured result Test standard / condition
Layer options 7-layer, 9-layer and 11-layer high-barrier structures Anti-fog performance Conforms to Grade 1 GB/T 31726
Thickness range 45–100 μm Tensile strength MD 33 / TD 30 N/15 mm GB/T 1040.3
Maximum width Up to 3,500 mm Elongation at break MD 435% / TD 410% GB/T 1040.3
Applications Chilled meat, seafood, produce, cheese and ready-meal trays Heat-seal strength 24 N/15 mm QB/T 2358
Features Anti-fog; optional easy-peel, barrier and printing; Clear display, stable sealing and fog resistance under refrigerated conditions Peel strength 6.35 N GB/T 2790
Customization Thickness, width, color, printing and barrier level Coefficient of friction μs 0.32 / μd 0.24 GB 10006
Documents ISO 13485, test reports and food-contact documents available on request WVTR 6.21 g/(m²·24 h) GB/T 1037; 38°C / 90% RH
RFQ information Food type, tray material, storage temperature, sealing conditions, shelf-life target, machine, roll size, quantity and destination OTR 3.25 cm³/(m²·24 h·0.1 MPa) GB/T 1038
Results apply only to the tested PA/EVOH/PE 60 μm sample. Report environment: 25°C / 50% RH · Test date: 2025-03-05 · Full report available on request.



High barrier is useful only when it addresses the food's actual sensitivity. Share the target shelf life, oxygen exposure risk and refrigeration profile so EVOH content, anti-fog performance and sealing compatibility can be balanced without unnecessary complexity.



Main Applications

product-1000-747

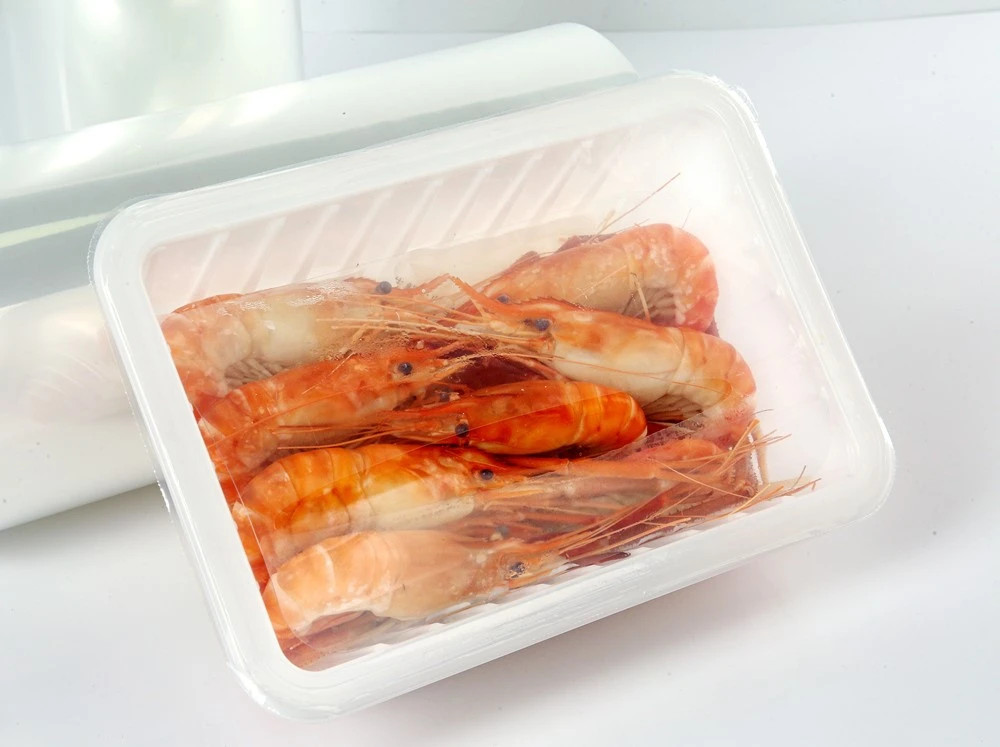

Fresh & Processed Meats: Prevents oxygen-driven discoloration in red meats and spoilage in poultry while eliminating internal fogging for premium retail presentation.

Prepared Meals & Produce: Used as lidding film for chilled ready-to-eat meals, fresh salads, and cut fruits where condensation ruins visual appeal.

Dairy & Seafood: Protects moisture and oxygen-sensitive items like smoked fish and specialty cheeses, maintaining freshness without moisture droplets obscuring the barcode or product.

Bakery & Pastries: Ideal for modified atmosphere packaging (MAP) of semi-finished or fresh baked goods, keeping viewing windows perfectly clear.



Benefits



Superior Gas & Aroma Barrier

Features an Oxygen Transmission Rate (OTR) up to 10,000 times more effective than standard polyethylene (PE), preventing oxidation, flavor loss, and spoilage.

Crystal-Clear Visibility

Specialized surface treatments prevent moisture condensation, ensuring the packaging remains free of fog for optimal retail display.

Extended Product Shelf Life

Ideal for modified atmosphere packaging (MAP) and vacuum packs, it extends the shelf life of highly perishable items like fresh salmon (often doubling it from 7 to 14 days).

Preservative Reduction

Eliminates or minimizes the need for artificial chemical preservatives by naturally locking out contaminants.

High Gloss and Transparency

Showcases products with superior brightness and low haze.

Material Efficiency

Its high barrier strength allows for down-gauging (making the film thinner) while maintaining mechanical strength and puncture resistance.



Pics

product-800-800
product-800-800



About Factory

product-590-443
product-593-445
product-595-447

Packing & Delivery

product-725-663

product-723-665

FAQ

Q: 1How to order ?

A: Contact our sales, send us film dimensions, qty, and specifications details, after we checked all details we will send you formal quotation

Q: 2 What size can we provide?

A: We provide thicknesses from 25-380 microns, with a max width of up to 3500 mm,customize size available

Q: 3 when can i get them after placed an order ?

A: Normally our prepare goods time 2-3days , if customize films at least 1 week

Q: 4 Can we get sample for testing

A: Yes we can provide sample for free

Q: 5 Why Choose us?

A: We have extensive industry experience and a professional team. 24 Hours Online Service. Good service with high quality products for selling, fast delivery with careful after selling services.
